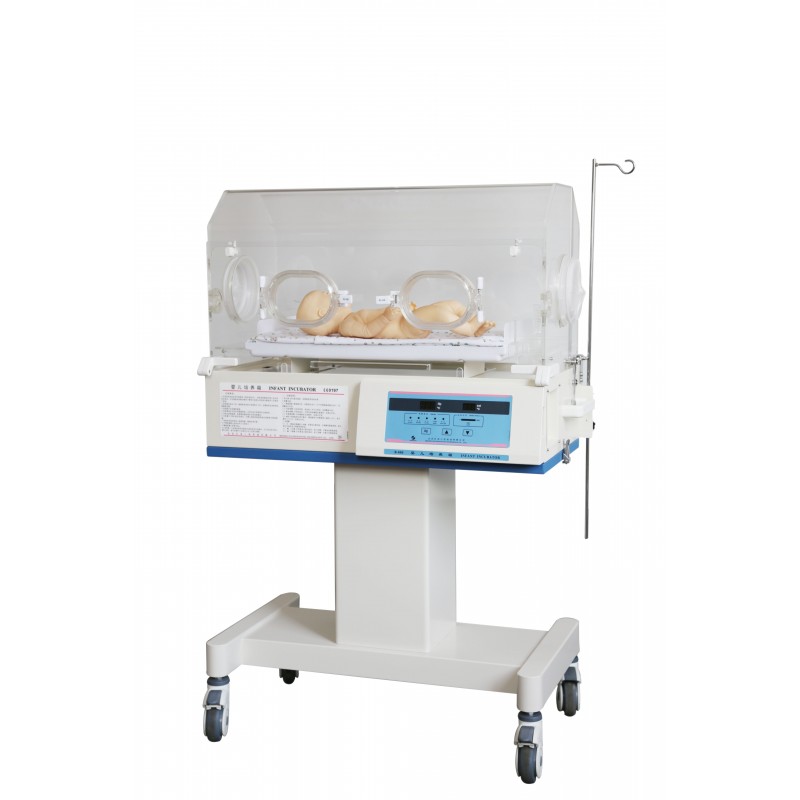

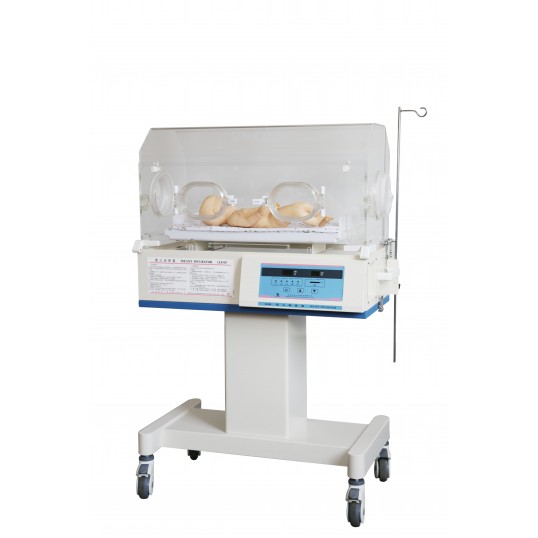

AP-103100-100

INCUBATOR

• Servo-controlled by micro-computer noiseless

• Touch switch panel with LED digital display, set-temp, real -temp are displayed separately…

• Multiply self-checking alarms with audible and visible

• Heating power rate indicates 0-100%

Standard configuration:

• Hood

• Infant bed

• Temperature controller

• Water tank

• Air filter

• Blue light radiant box

• I.V. Pole, stand, shelf

• Dimensions: 109 x 65 x 100cm

• Volume: 0,71m³

• Weight: 72 kg



Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

Technical specification:

• Power supply : AC220V-50HZ

• Power input: 600VA

• Temperature Control range: Air mode Control: 25°C~37°C

• Temperature variability: ≤0.5°C

• Temperature uniformity: ≤0.8°C

• Temperature rising time: ≤35min

• Noise level: ≤ 55dB( A)


Alarms:

• Audible and visible alarm

• With indication, and it can indicate the real temperature and cut off the power supply of heater

•Over-temp alarm: when the temperature control ≤38°C

• Deviation alarm  3°C

• Sensor alarm: - Air temperature sensor failure, Isolate overheat sensor failure, Air flow sensor failure

• Power failure alarm: when there is no power or the power cord is disconnected

• Motor alarm: - When motor fails
