AP-103200-90

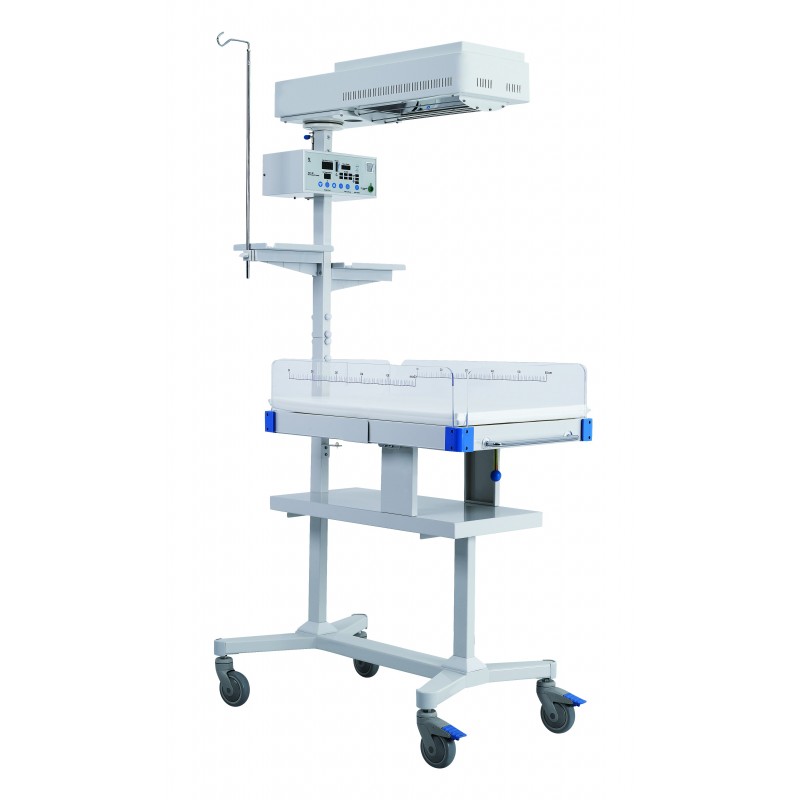

INFANT RADIANT WARMER

• Servo control: Skin T° of Baby, Air temp of bed

• Automatic / manual control

• Sensor for measure bed or skin temperature

• RS232 Connector for Monitor

• Light Touch control panel waterproof

•Separate display of temperature

• Timer including in controller

• Heating consumption 0-100%

• Radiator horizon angle adjustable in tow direction from 0 -90°C

• Bassinet tilting ± 15°

• X-ray tray under bassinet

• Far-infrared quartz tube as heater Rail of bed easy to move

Standard Accessories:

• Skin Sensor

• Examin light

• Hearter tube

• X-ray tray

• Power cord

• Operator manual

• Soft mattress

• Trolley stand

• Assembly tools

• Instrument shelf

• ABS rail of bed.







Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

Technical specifications:

• Power Supply: 220V ± 10% , 50Hz ±10% or 110V ±10% ,60Hz ±2%

• Power rate: ≤ 1000va

Operating condition:

• Environment temperature 18°~30°C

• Relative humidity <80%

• Environment air flow speed

Temperature control:

• Bed T° controI range 25°C~37°C

• Skin T° controI range 34°C~37°C

• T° controI accuracy ± O.1°C

• Measure T° error ≤±O.3°C

• Mattress T° uniformity ≤2.0°C

• Temperature rise time ≤38 minutes

Alarms:

• Four kind failures Alarm identification , Audible and visible, when alarm active, automatic cut off power supply and display actual temperature

• Over Temperature Alarm: Activated actual temperature exceeds 38 °C.

• Temperature deviation alarm: Activated actual temperature 1°C departure the set point

• Sensor Alarm: Activated if sensor short circuit, open circuit or place out of right position
