AP-103210-93

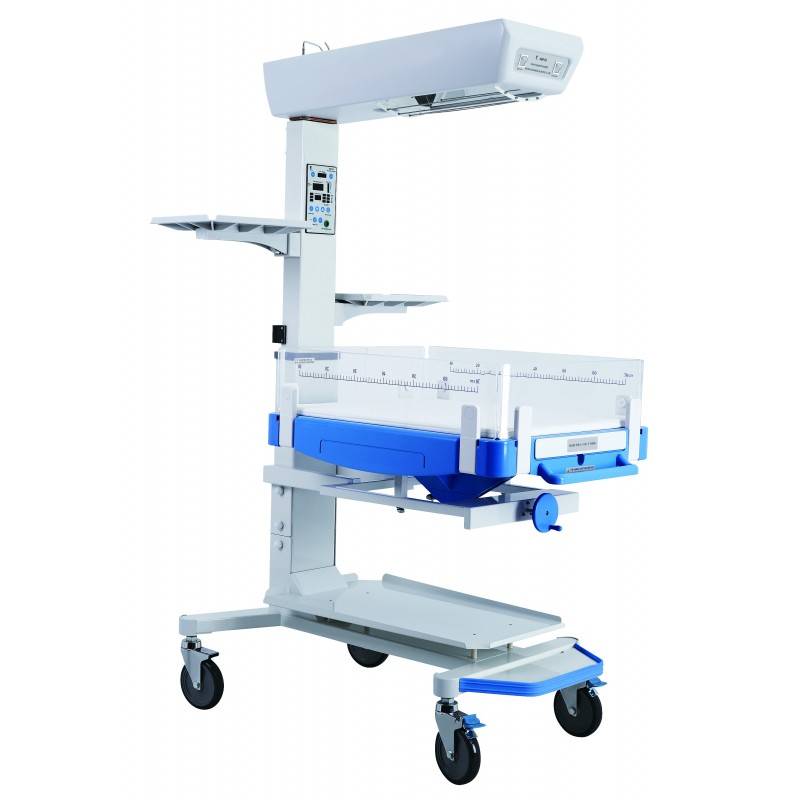

INFANT RADIANT WARMER

• Servo control: Skin temp of Baby, Air temp of bed

• Automatic / manual control

• Sensor to measure the bed or skin temperature

• RS232 CONNECTOR for Monitor

• Touch control panel waterproof

• Separate display Set temperature and Actual temperature

• Timer

• Heating consumption 0-100%

• Bassinet gradient adjustable in ± 15°

• X-ray tray under bassinet

• Far-infrared quartz tube as heater

• Rail of bed easy to move

Standard Accessories:

• Skin Sensor

 Examin light

Hearter tube

• X-ray tray

•Power cord

•Operator manual

•Soft mattress

•Trolley stand

•Assembly tools

•Instrument shelf

•ABS rail of bed








Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

Technical Specifications:

• Power Supply requirements: 220V ± 10% , 50Hz ±10% or 110V ±10% ,60Hz ±2%

• Power rate: ≤ 1200va

• Environment temperature 18°C~30°C

• Relative humidity <80%

• Environment air flow speed

Temperature control:

• Bed T° contraI range 25°C~37°C

• Skin T° contraI range 34°C~37°C

T° controI accuracy ± O.1°C

• Measure t° error ≤±O.3°C

• Mattress t° uniformity ≤2.0°C

• Temperature rise time ≤38 minutes

• Radiator horizon angle: 0, 30, 60 °

Alarms:

• 4 kind failures Alarm identification (audible and visible), when alarm active, automatic cut off power supply and display actual temperature

• Over Temperature Alarm: <38 ‘C

• Temperature deviation alarm:

• Activated actual temperature 1’C departure the set point.

• Sensor Alarm: Activated if sensor short circuit, open circuit or place out of right position

• Power failure alarm: Activated if power break down or power cord disconnect
