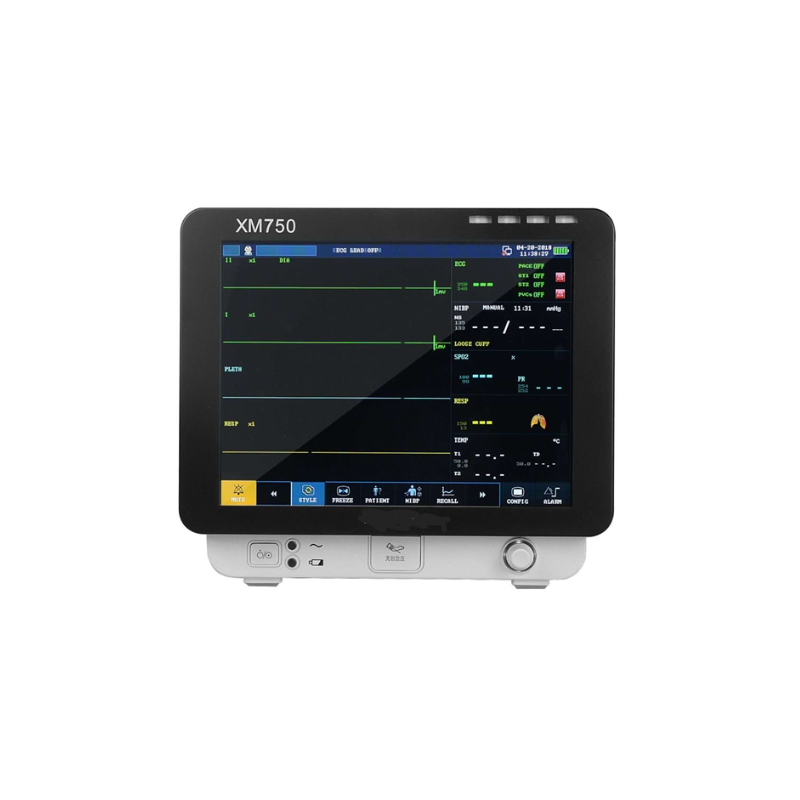

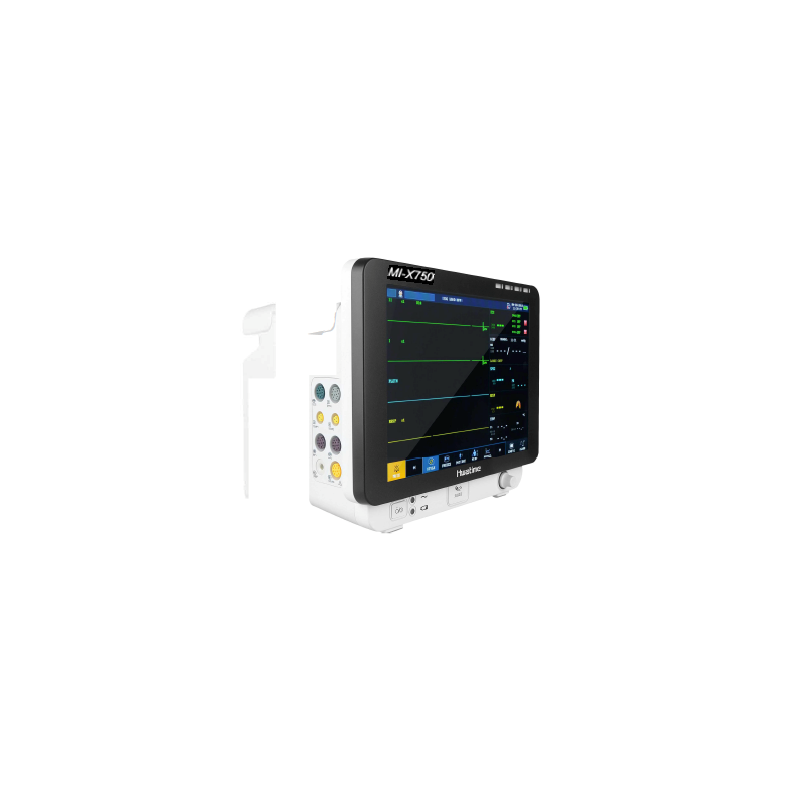

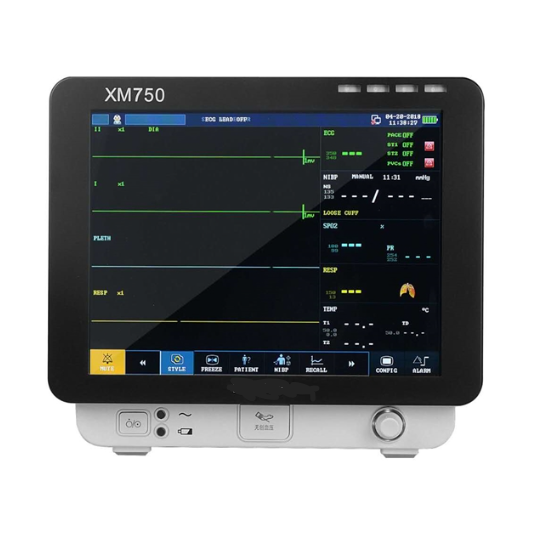

AP-MI-X750

PATIENT MONITOR

Features

12.1inch, color  LCD screen

Display resolution: 800*600

N. W. :4. 5kg;     Monitor Size:32*16*27cm

Purpose of Use: ICU, lnpatient   wards   ER, OR, PACU

Rechargeable high energy built- in Li Battery

Easy connectiong with central monitoring system

Controlled by the knoband works with buttons or menu functions on the screen



Standard parameters:

ECG、SPO2、NIBP、TEMP、RESP、PR



Optional parameters :

EtCo2, 2-IBP, 12 leads ECG, Masimo SPO2, Suntch NIBP, touch, screen, thermal printer, wired/wireless central monitoring system, trolley, wall mount



The machine is supplied with the standard parameters, but also equipped with the possibility to be used with the printer and the EtCo2 functions.

These accessories can be bought later if no needed in the beginning and just be connected to the machine.



 Power Requirement

VoltageAC100-240V,50/60HZ

Battery1 sealed lithium battery

Full charge time: 2 hour typical of autonomy without electrical source

Recharge time 4 hours



Storage

Wave recall 128hours

Trend review 24hours



Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

ECG

Number of Leads             3 or 5 leads(optional 12Ieads)

Lead View

User Slectable:I,11,Ill,aVR,aVL,aVF,V      (5 Lead)

;1,11 or 111                        (3 lead)

Gain Slection     x1/4,x1/2,x1 and x2

Frequency Response

Diagnostic:0.05 to 130HZ

Monitor:0.5 to 40 HZ

Surgery:1-20HZ

Heart rate           Adult: 15- 300bpm / min

Neonat e/ Ped : 15- 350bpm / min

Accuracy: ±1% or             ±1bpm

CMRR

Diagnostic Mode: >90 dB

Monitor Mode: >1 00dB

Surgery Mode: >100dB

Calibration Signa              1 (mV p-p), Accuracy : ±5%

ECG Signal Range ±8 m V ( p-p )

Arrhythmia detection    Available

Arrhythmia analysis        13species



Heart Rate

Source                  User Slectable:Smart,ECG,Pleth

Range                   Adult     30-250 bpm

Neo nate / Ped 15- 350 bpm

Accurancy           +- 1bpm or ±1% whichever is greate



Pulse Oximetry Sp02

Range                   0 to 100%

Resolution          ±3%

Accuracy             70% to 100% range ±2%

0 to 69%;             undefined

Pulse Rate:

Range:                 20-250bpm

Resolution:         1bpm

Accuracy:            ±3bpm

Respiration Rate

Rate:     Adult: 7 ~ 120 rpm

Neo/Ped 7 ~ 150 rpm

Resolution          1Brpm

Accuracy             +- 2 Brpm

Apnea alarm      10- 40s



NIBP

Technique          Oscillometric during inflation

Cycles(Selectable)           1,2,3,5,10,15,30,60, 90, 120 , 180 , 240, 480min

Adult range:       SYS 40-270mmHg

DIA         10 - 215mm Hg

MEAN 20- 235mmHg

Pediatric range:                SYS 40- 200mmHg

DIA 10-150mmHg

MEAN 20- 165mmHg

Neonate Range:               SYS 40- 135mmHg

DIA 10 - 100mmHg

MEAN 20- 110mmHg

NIBP Storage: 800group

STAT model       5 minutes of continuous reading

Resolution                          1mmHg

Maximum Mean errer accuracy:              + -5mmHg

Maximum Standard Deviationaccuracy:8mmHg

OverPresure protection

Adult: 300 mmHg

Pediatric: 240 mmHg

Neonate:   150 mmHg



Temperature

Channels             2

Range,   Accuracy            0°-50 °C   + -0.1 °C

Display                 +/- 0.1°C

Probe   YSI 400 and YSI 700 Series



EtCo2

Sidestream

Range   0 - 1 9. 7% or      0 - 150 mmHg or 0- 20k Pa

Resolution          0.1mmHg

Accuracy             0- 40mmHg         + 2mmHg

41- 70mmHg      + 5% of reading

71- 100mmHg    + 8% of reading

101- 150mmHg+ 10% of reading

Balancing gas:environmental, N0 2, He



2 Channels        IBP

Channels 2

Pressure Name and Range:

ART, PA, CVP, RAP, LAP, ICP, Pl , P2

0 - 300 , - 6 - 120, - 10 - 40 , - 10 - 40, - 10- 40, - 10- 40, - 10- 300m mHg

Accuracy :   +- 1mmHg   or   + 2% whichever     is greater
