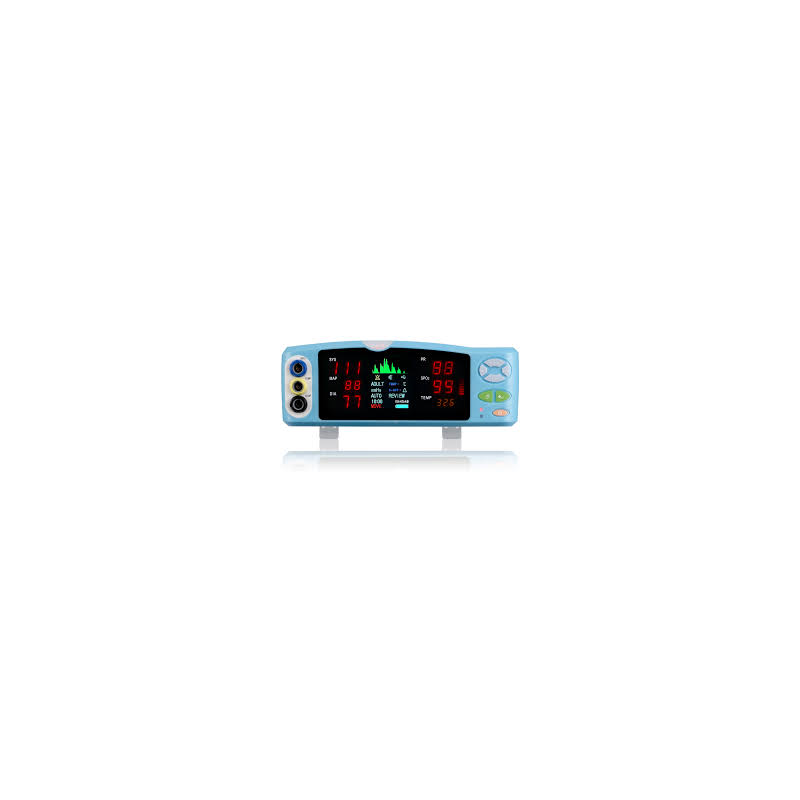

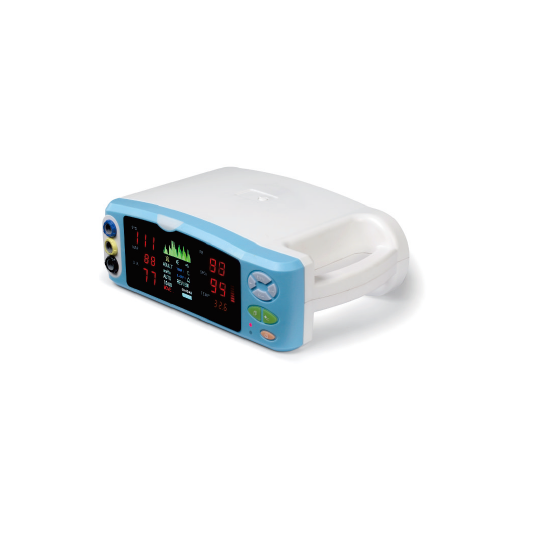

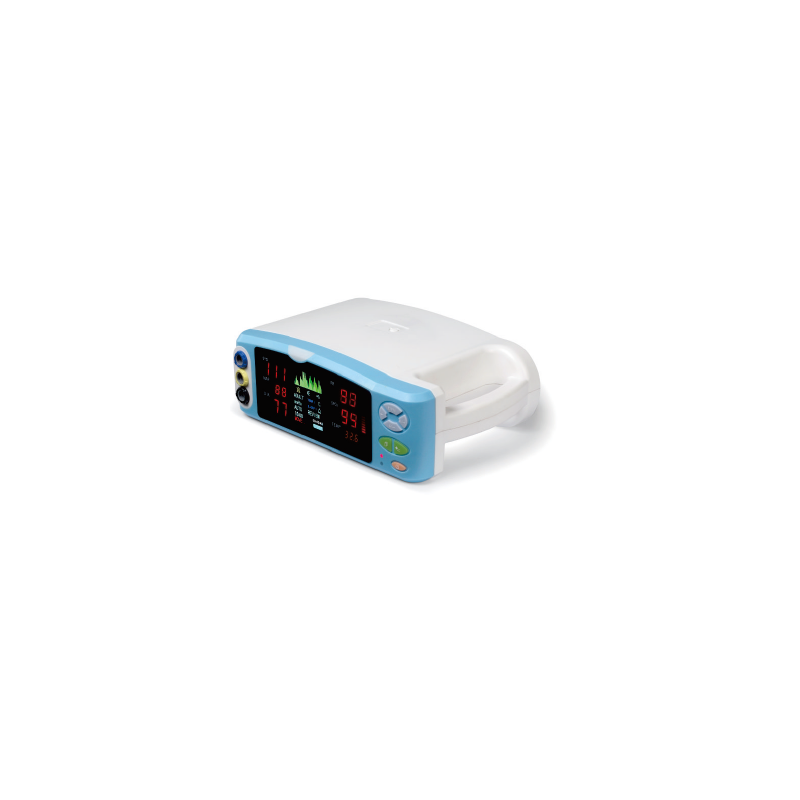

AP-103480-JIII+

VITAL SIGNS PATIENT MONITOR

• 4 parameters  : NIBP , SpO2, Pulse rate , temperature .

• Screen color  LCD  2.8 ” with real time display

• Size & weight : 280X190X100mm ; 1Kg

  Power supply : A C: 100-240V , 50/60Hz  , 0.7A

•  Built-in rechargeable Li-ion battery

• Audio and visual alarm

• Via USB to connect with the computer

• Storage trend data up to 3888 groups

 NIBP:

• Oscillometric method

• Measurement range  : - Adult: 30-255mmHg

                                    - Pediatric : 30-160mmHg

Resolution : 1mmHg

• Measurement mode : Manual / Auto / STAT

• Measuring interval in AUTO mode  : 1,2,3,4,5,10,15,20,30,45 & 60 min.

• Measurement type : SYS, DIA,MAP

• Over-pressure protection  : - Adult : 300mmHg

                                          - Pediatc : 220mmHg

SpO2:

• Measurement range  : 0-100%

Resolution : 1%

• Accurancy: +/-2%  (90-100%)

                    +/-3% (70-89%)

Pulse rate:

• Measurement range : 30-250bpm

Resolution : 1bpm

• Accurancy:  +/- 1 bpm

Temperature:

• 1 Channel

Resolution : 0.1°C

• Accurancy :  +/-0.2°C

• Measurement range : 0-50°C
