AP-103470-6V

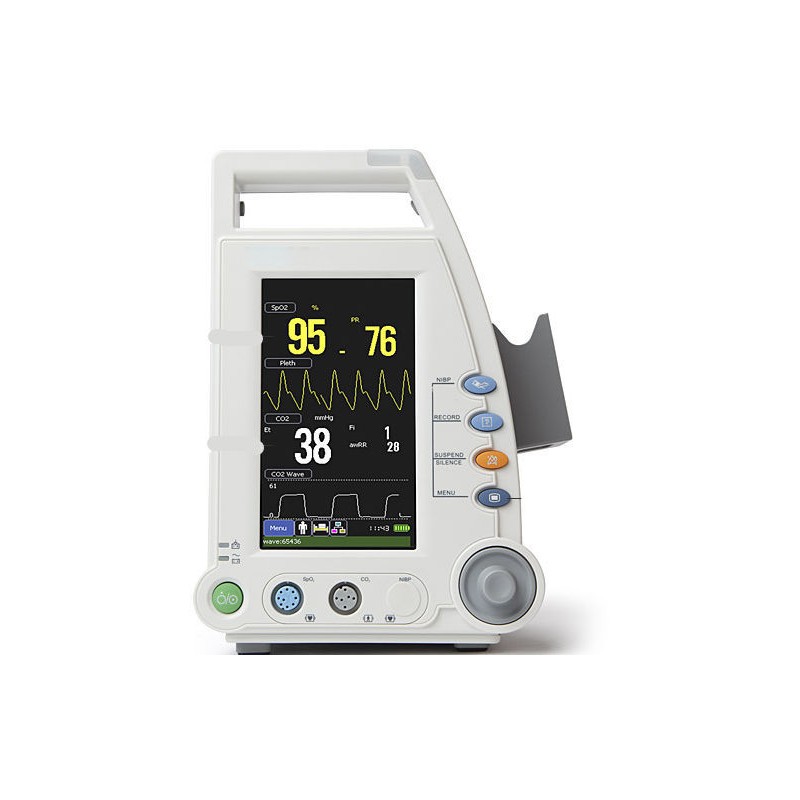

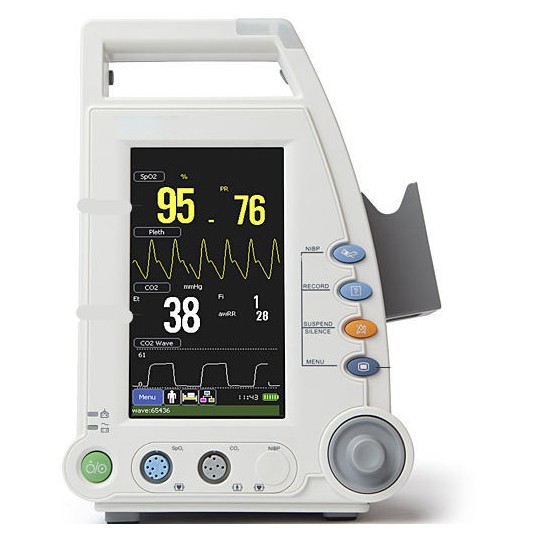

PORTABLE VITAL SIGNS MONITOR FOR INTENSIF CARE/ETCO2/SPO2

• An intuitive interface and a compact , portable design . It allows for the monitoring , displaying,reviewing and storing of a patient's physiological parameters : SpO2 ;PR and EtCO2 .

• Color screen  TFT-LCD  7” , anti-glare .

• Size & weight : 160X130X260mm ; 2.5Kg

• Power supply : AC: 100V-240V , 50Hz/60Hz  , 70VA

• A long-lasting rechargable lithium-ion battery

Standard configuration:

PR:

• Measurement range : 20-250bpm

Résolution : 1bpm

• Accurancy : +/- 1% ou  +/- 1 bpm

BLT Digital SpO2

• Measurement range : 0-100%

Résolution : 1%

• Accurancy : +/-2%  (70-100%)

                   +/-3% (35-69%)

 NIBP:

Méthod automaticoscillometry

•  Range: - Adult : 10-270mmHg

               - Child : 10-235mmHg

               - Néonate : 10-135mmHg

• Accurancy : Static  +/-3mmHg

• Pulse rate range : 40-240bpm

Options:

 Masimo SpO2 ; Nellcor SpO2 ; Micro-stream EtCO2 ; Instant infra-red ear Thermometer ; Scanner barcode scanner  ; Touch screen
