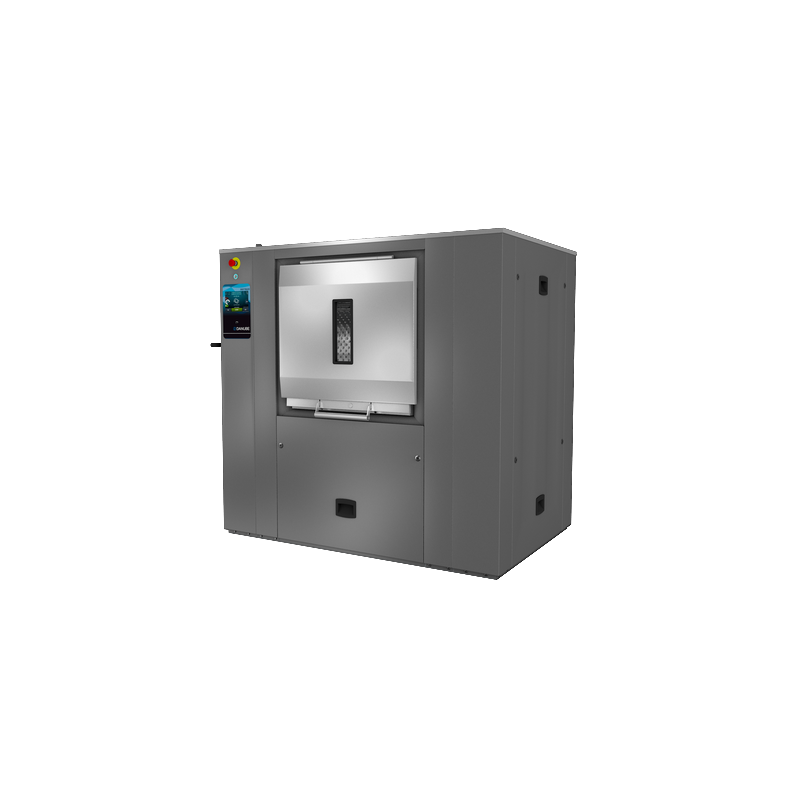

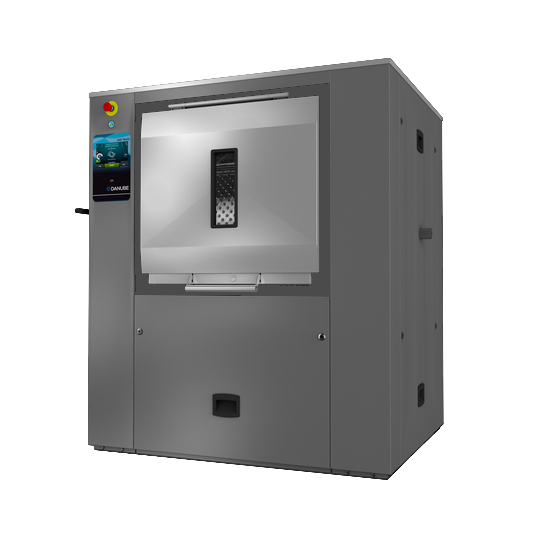

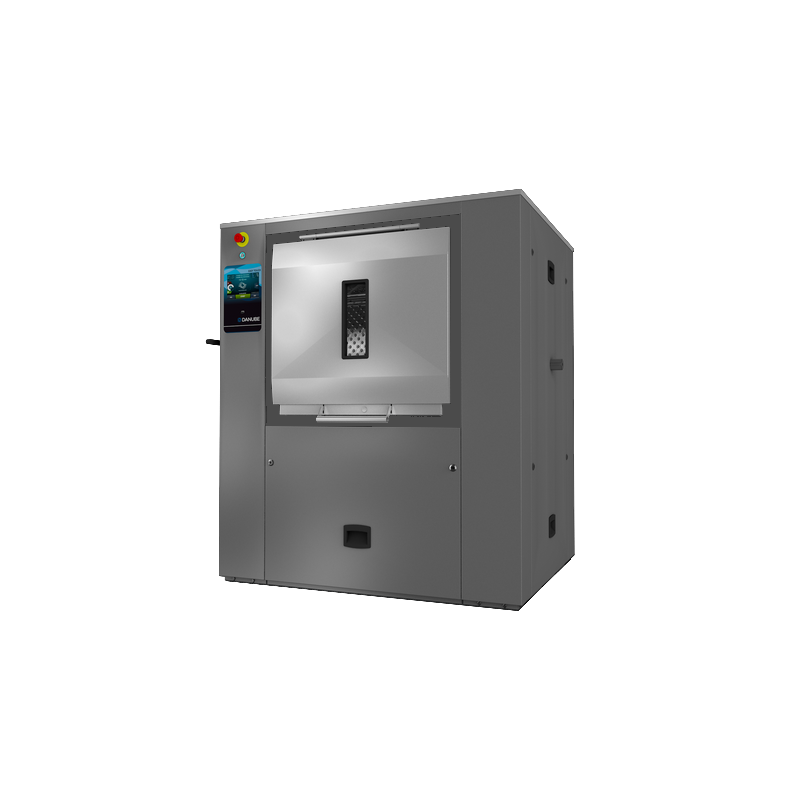

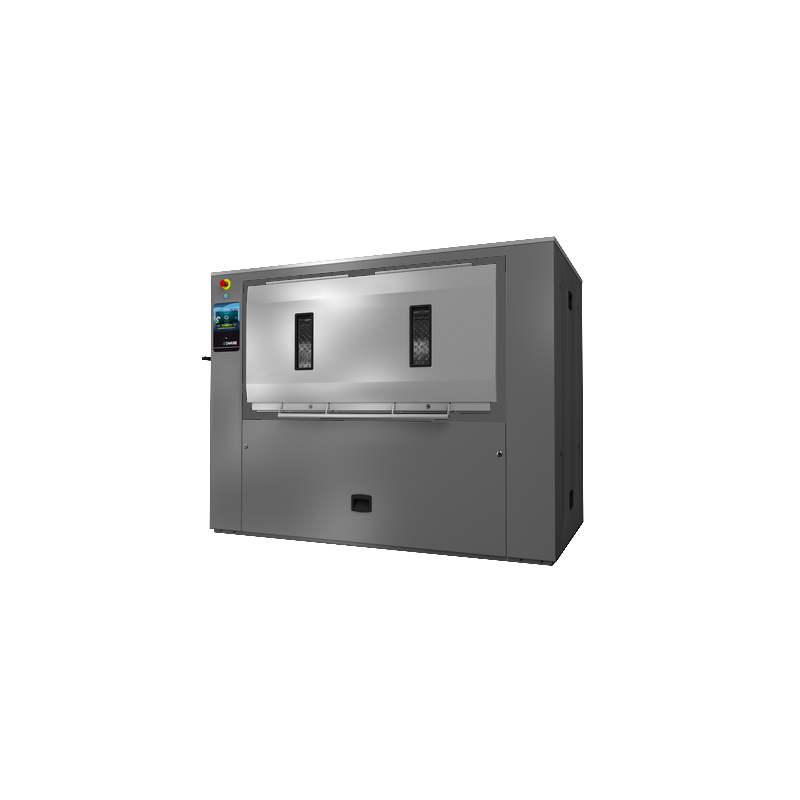

BL-DBW-ET2

BARRIER WASHERS EXTRACTORS , SOFT MOUNTED , HIGH SPIN SPEED

Capacity : 27 to 70 Kg

• G factor 375 , extraction speed 920 rpm

• No need of anchoring

Horizontally uspended drum by two axles.

• Outer casing in grey skinplate ,top panel , drum and vat in AISI304 Stainless steel

• EasyTouch 2 (ET2) microprocessor with touch screen 7 ", double display : 29 preset programs , 37 languages , ssibility to import, export, reate new programs.

• USB port

• 3 water inlets

• 8 signals for dosing  ,ready to be connected to dosing pumps (no detergent box)

• Central drain Ø80mm

•  Automatic positionning of drum with electric brake

OPTIONS ON THESE MODELS :

  • Detergent box 4 compartments kit (on order or possibility to add later on site)
  • UPS option in case of power failure (avoids motor brake blocking)



DBW27 ET2

DBW35 ET2

DBW50 ET2

DBW70 ET2

Capacité

Capacities

(1:9 –1:10)

30 - 27 kg

39 – 35 kg

54 – 49 kg

78 – 70 kg

Volume tambour

Drum volume

266 l

347 l

489 l

694 l

Essorage TMN

Spin speed RPM

920

920

920

920

Facteur G

G Force

375

375

375

375

Dimensions mm

1201x1098x1580

1359x1098x1580

1654x1098x1580

2061x1098x1580

Poids net

Net weight

886 kg

926 kg

1063 kg

1190 kg
