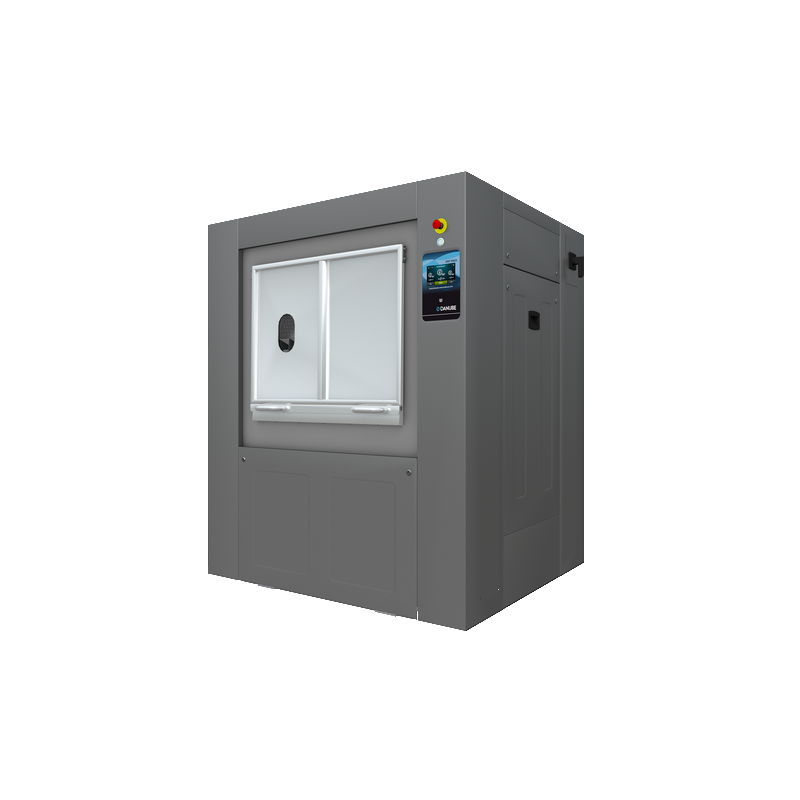

BL-AS100 ET2

PASS THROUGH BARRIER WASHER EXTRACTOR , SOFT MOUNTED

Capacité : 90 Kg

• G factor 325, extraction speed 750 RPM

Horizontally suspended drum by 2 axles, Pullman partition .

No need of anchoring to the floor

Grey skinplate outer casing , top nel en stainless steel.

Vat and drum in AISI304 stainless steel.

 ET2 microprocessor with 7' touch screen , double display : 29 preset programs, 37 languages , possibility to import , export, create new programs.

USB port

 3 water inlets , double drain.

 8 signals for  dosing pumps , ready to be connected to dosing pumps (no detergent box)

Central drain

Automatic positioning of drum with electric brake.

• Needs compressed for door opening  (air pressure 4-7 bar , Ø 8mm , air nsumption 10Nl/min).

OPTIONS ON THESE MODELS :

  • Detergent box 4 compartments kit (on order or possibility to add later on site)
  • UPS option in case of power failure (avoids motor brake blocking)



AS 100

Capacité

Capacities

(1:9 –1:10)

100 - 90 kg

Volume tambour

Drum volume

900 l

Essorage TMN

Spin speed RPM

750

Facteur G

G Force

325

Dimensions mm

1677x1344x1960

Poids net

Net weight

1900 kg
