AP-104350-820

AP-104350-820

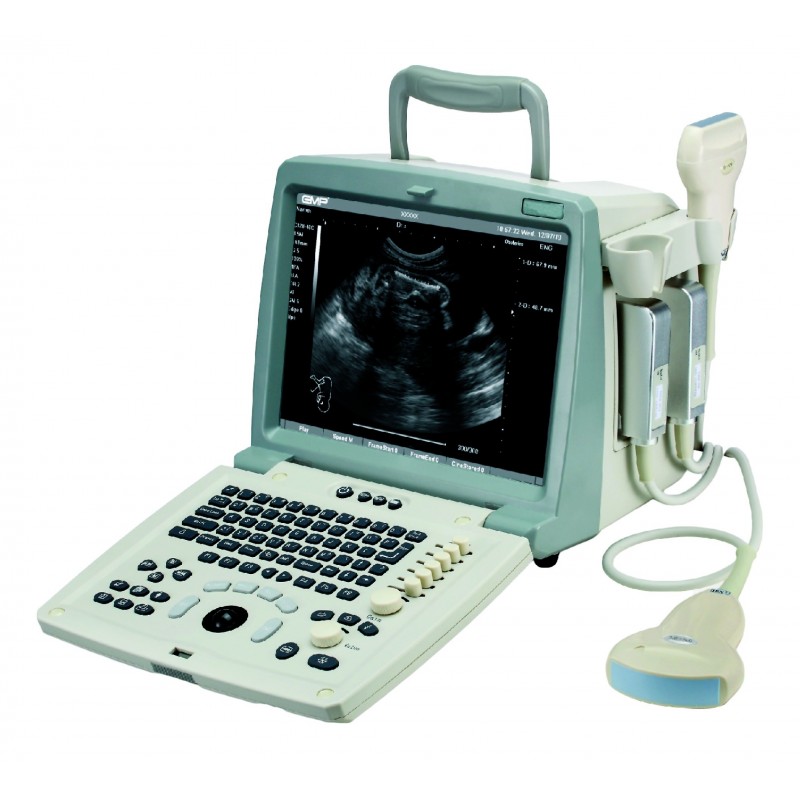

PORTABLE DIGITAL ECHOGRAPH

• Modes : B, B/B, 4B, B/M, M

B Mode : distance , circumferences , perimeter , angles , time

M Mode : distance, time , velocity, heart rate

• Gray scales : 256

• Monitor: Screen 10.4” high resolution  LCD

• Display :  Distance, surface, circumference , volumes, weight of foetus , date/time , age of foetus , delivery date , heart frequency

• Zoom: 1,0  - 1,2 - 1,5 - 2,0  real time

• Marks: Body marks  100 types

• Scanning Angle :   from 30° upto 150° depending on probes

• Scanning Depth :  from 45° upto 250° depending on probe

• Software:  365 frames bidirectional Cine loop  - External disk permanent storage 1600 frames

• Peripheral ports : 2 probes connectors , 2 USB ports, 1 video output, 1 VGA output

• Supplpy : AC 240V / 100V

• Power supply : 50Hz / 60Hz

Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

Delivered with :    1  Electronic Convex Probe 2 ,0  ~ 6,0 Mhz

                          1 transport bag

                          1 Lithium battery and adaptator

                          1 Tube of gel

                          Manual


In Option :   * Electronic  Linear Probe  6,5 -7,5 - 9,0 - 10,0 Mhz

                  *  Electronic Micro- convex probe  5,0 -  6,5 - 8,0 Mhz

                  *  Electronic Trans-Vaginal Probe  5,0 - 6,5 -7,5 - 9,0 Mhz

                  *  Video printer

                  *  Laser printer

                  *  Biopsie needle

                  *  Transport trolley

                  *  Foot switch

                  * Flash stick
