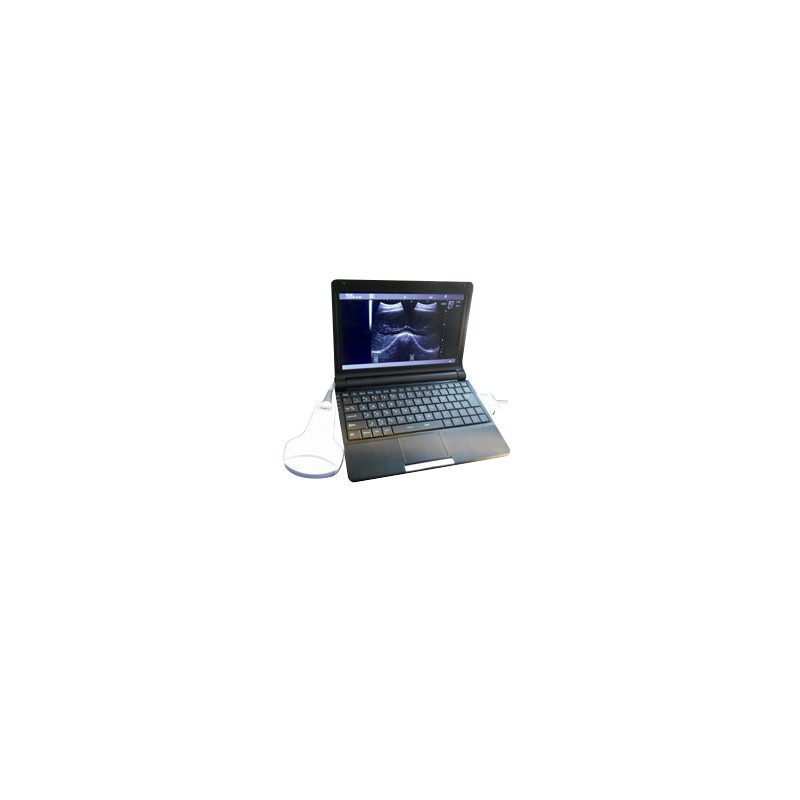

PORTABLE ULTRASOUND
• Use for gynecology, heart, abdomen,...
• Modes : B, B/B, 4B, B/M, M
• Gray scales : 256
• Monitor: Screen 10.1” high resolution TFT LCD
• Probe frequency : 2.5 ~ 10mhZ
• Probe connector : 1
• Storage : Massive image storage capacity, external USB disk, SD card
• Zoom: 0 ,8 - 0,9 - 1,0 - 1,1 - 1,2 - 1,3 - 1,4 - 1,5 - real time
• Lateral resolution : ≤3mm (depth ≤80mm)
≤4mm (≤80mm depth≤130mm)
• Longitudinal resolution : ≤2mm ( depth≤80mm )
≤3mm ( 80mm ≤depth≤130mm )
• Scanning Depth : ≥160mm
• Blind area : ≤5mm
• Geometrical position distortion : lateral ≤15
Longitudinal ≤10
• On screen display : Date, time, age, sex, Patient ID and hospital information, gain, focusing, comments, scroll, zoom setting
• Image Processing :
Pre-processing, continuously variable aperture, TGC, Edge enhancement, Dynamic filtering, Dynamic range, Frame correlation, smooth
Post processing , black/white reverse, gray map. Edge enhancement, Image reverse Left/right, Up/down,
• Measurements: Distance, Circumference, area/perimeter, volume, Heart rate, pregnant weeks, fetal weight…..
• Software: Cine loop memory 192 frame OB & GYN & Cardiac software, OB report, 1024 storage
• Body marks: over 40 body marks
• Supplpy : AC 240V / 100V
• Power : 50Hz / 60Hz , Li-ion battery
Availability date:
16 years of experience
Large distribution network
Quality technical services
More info
Delivered with : 1 Convex Probe 3 ,5 ~5,0 Mhz
1 Protection cover
1 Tube of gel Manual
In Option : * Linear Probe 7,5mhz
* Micro- convex 7,5mhz
* Trans-Vaginal Probe 6,5mhz
