MO-106740

SHADOWLESS OPERATION LAMP

Functional lamps , perfectly suited to the operating requirements of modern operating rooms.

The LED cold light source prevents the drying of wounds through an ultra-thin optical lens system and nano-protection heat shield

Digital control system for adjusting the various functions of the lamp

ON / OFF switch

Continuous adjustment of light intensity.

Adjusting the color temperature.

Size of the illuminated field focusable by removable and sterilizable handle .

Titanium alloy suspension arm.

Unavailable on the European market

Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

Technical specifications:

• Light intensity at 1 m distance: 80000 - 160000 Lux

• Spot  diameter: 110-180mm

• L1 + L2 Depth of illumination: 150cm

• Chromatic Rendering Index (CRI)  100≥ Ra ≥ 85

• Optional color temperature: (3500-4500) +- 500K

• Number of LED bulbs: 72 (x2)

• Working distance: 70-140cm

• Average LED life: 50 000 h

• Power supply: 110V / 220V -   240 VA

Camera specifications:

• Resolution : 2.380.000  pixels

• Zoom : 10 X optical  ; 12 X digital

• Image rotation: unlimited, mechanical and electronic

• Vidéo signal output : HD : HD-SDI

• Minimum working distance  : 0mm à 800mm

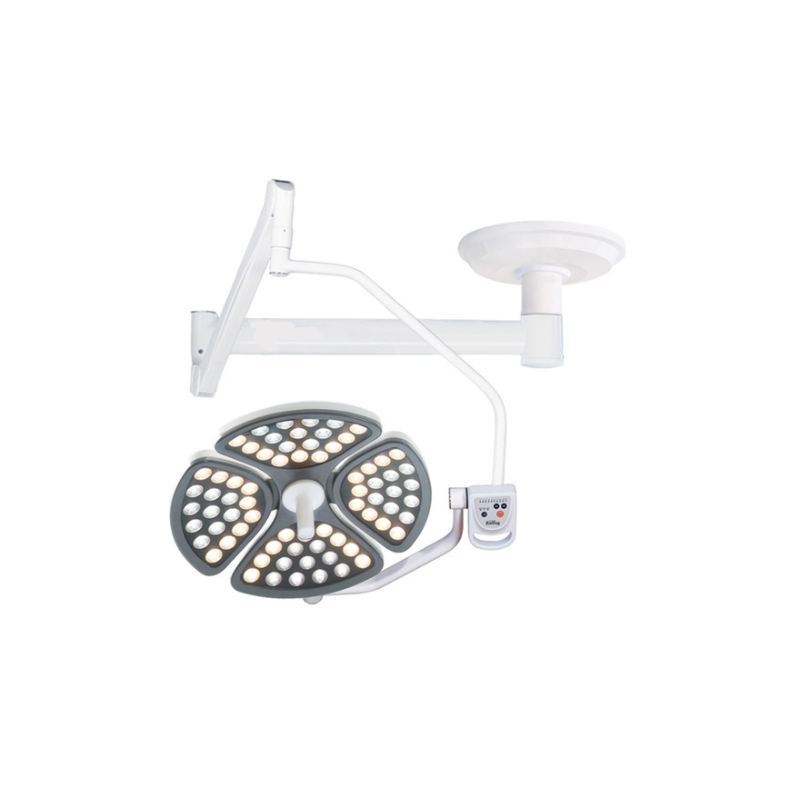

MO-106740-1 :  In single ceiling

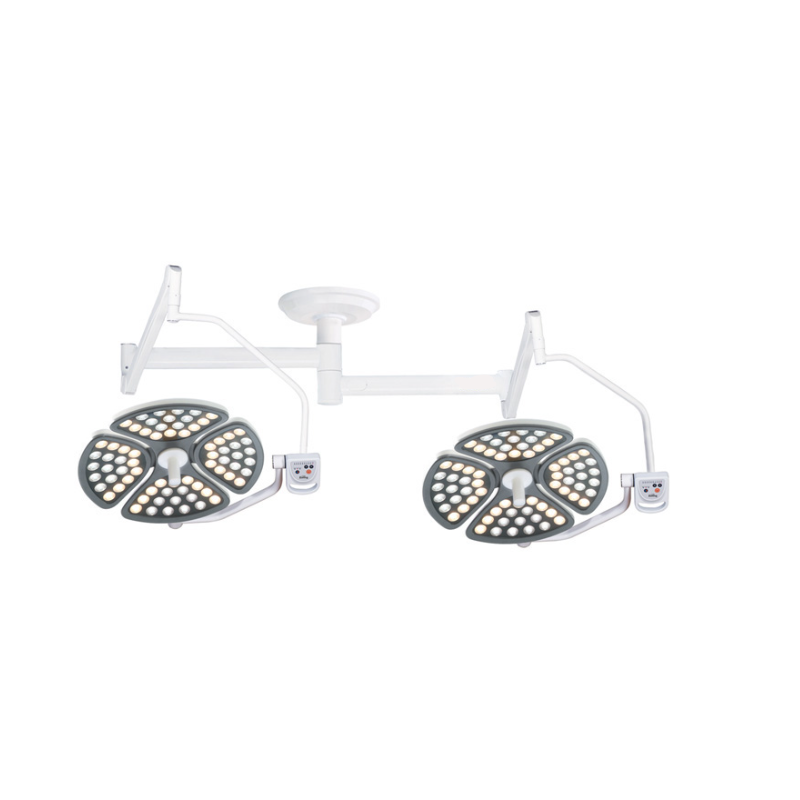

MO-106740-2 :  In double ceiling

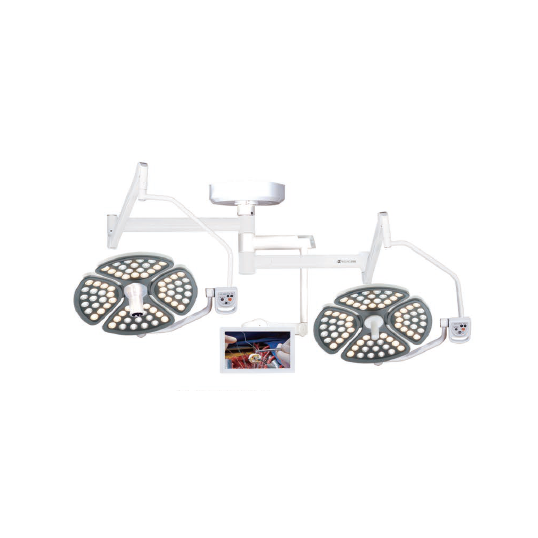

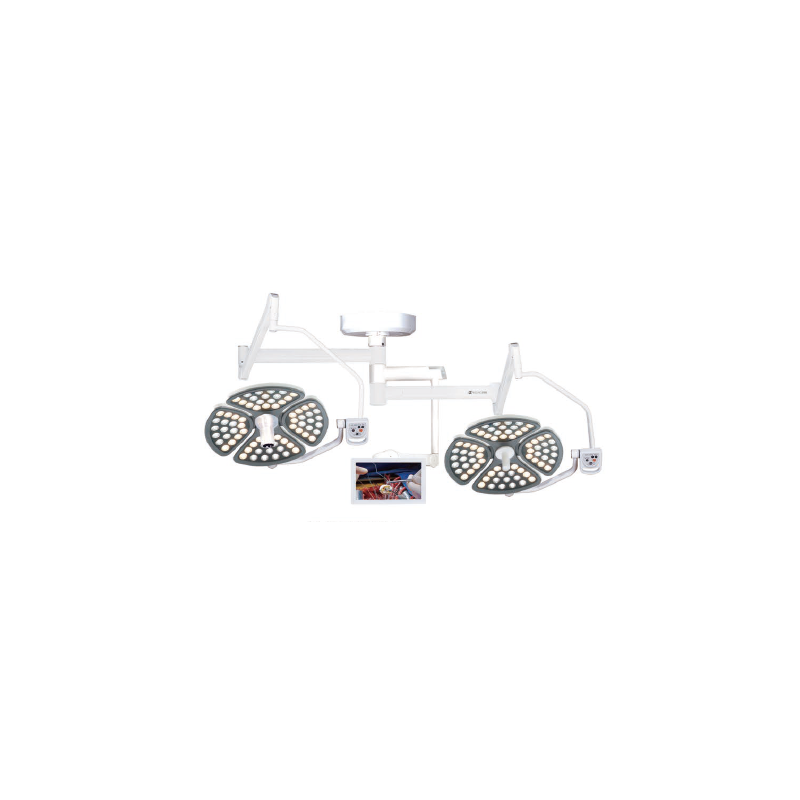

MO-106740-C :  With digital HD camera system
