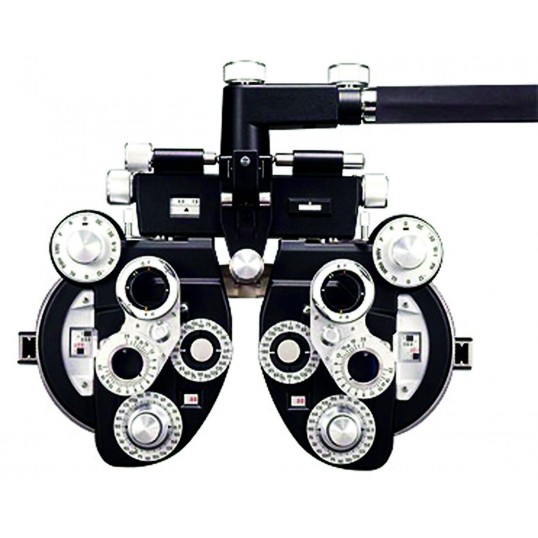

OP-200550
MANUAL PHOROPTER
• Spheres: +16 ,75 up to -19,00D (steps: 0,25D) +26,75D upto-29,00D with additional lenses +10,00 ou -10,00D”
• Cylinders: 0 ,00 up to -6,00D ( steps: 0,25D)
• Axes: 0 up to 180°
• Cross-cylinders: +- 0,25D
• Prisms: 0 up to 20 ( steps : 1D)
• Lens dial adjustment: 48 up to 75mm ( steps : 1mm)
• Adjustment Glass-Eye: 13,75mm (apical corneal surface window )
• Adjustment forehead support: 16mm
• Convergence: 380mm (when DP=64mm)
In option:
• Card
• Support and rod
