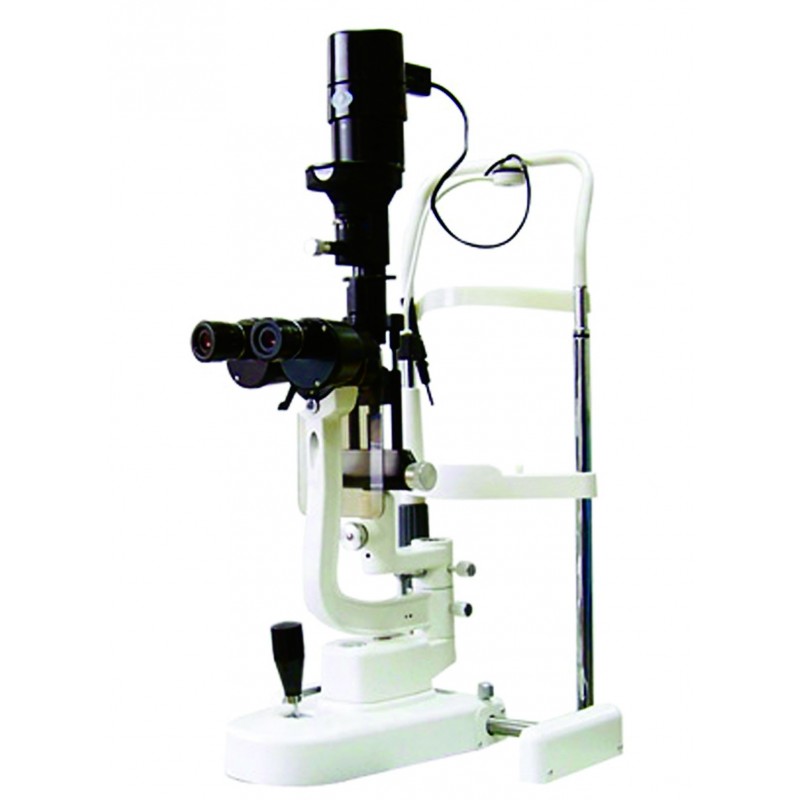

OP-200520

SPLIT LAMP

• Microscope Type Converging stereoscope

• Magnification: 2-steps

• Eye piece: 10X

• Total magnification and field of vieuw : 10X (Ø18), 16X (Ø14) mm

• Range of pupil distance (mm) 55~82

• Adjustable of Diopter : ± 6D

• Slit Width (mm) : 0~9 adjustable

• Slit Height (mm) : 1~8 adjustable

• Slit Angle: 0~180 adjustable

• Slit Inclination : 5°, 10°, 15°, 20°

• Light Spot diameter (mm): Ø9, Ø8, Ø5, Ø3, Ø2, Ø1, Ø0, Ø2

• Filter Heat absorption, grey, redfree, cobalt blue

• Illumination bulb: 12V / 30W halogen bulb

• Voltage/Frequency: AC 220V ± 10%60Hz ± 1Hz AC 110V ± 10%50Hz±1Hz

• Power: 58VA
