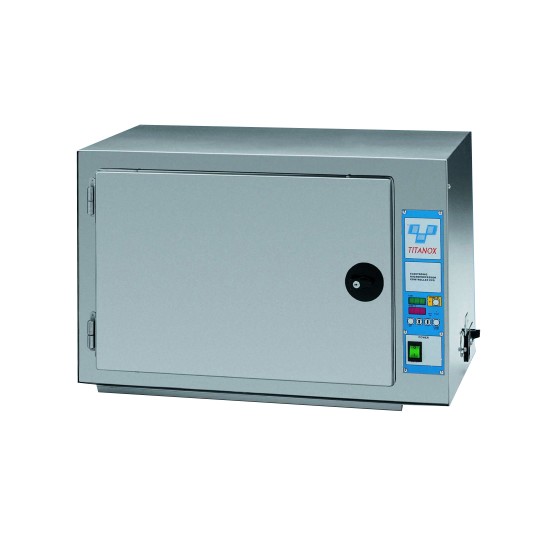

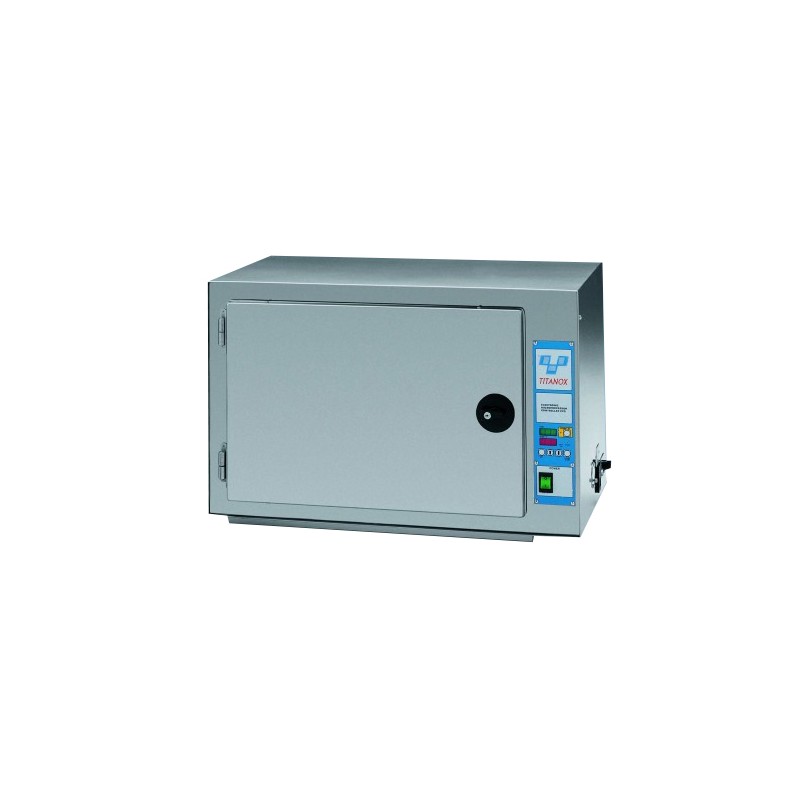

AP-100100 / AP-100101

DRY HEAT STERILIZING UNIT

• mod."Pasteur" electronic

• Outer case made of stainless steel

• Inner structure, 2 adjustable inner shelves, hinged door completely made

   of stainless steel

• Inner structure and door with nontoxic silicon rubber gasket, insulated by

   high grade glass wool

• Stainless steel armoured heating element

• Lockable by key

• Adjustable aeration tunnels, placed on the bottom of the right side and on

   the top of the left side for hot air adjustment and circulation, which is

   useful for a quick cooling of the device.

• Safety thermostat

• 230V – 50/60 Hz

AP-100100

• Electronic running in continuous (stand by) or timed. Timer from 0 to 250

minutes

• Adjustable temperature from 0° to 200.

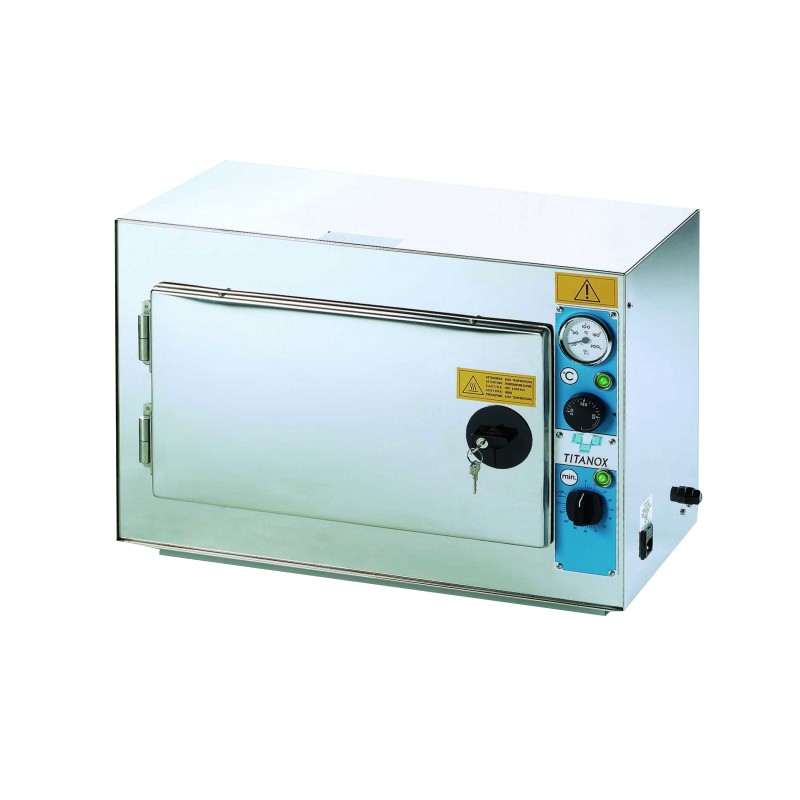

AP-100101

• The electric plant is insulated and protected by silicon sheaths

• Timer from 0 to 120 minutes which disconnects the device at the end of the programmed time

• Probe thermometer 0°C - 200°C

• Probe thermo-regulator 0°C - 200°C

• Double control pilot light (red and green)

 REF.                   Dim. Exterior                  Dim. interior                   Capacity

AP-100100-20  56.5 x 35 x 34.5h cm       40 x 22 x 22h cm                   20L

AP-100100-60   69.5 x 47.5 x 43h cm      53.5 x 36.5 x 32.5h cm           60L

AP-100100-120  85.5 x 56 x 58.5h cm      67 x 43 x 42h cm                 120L
