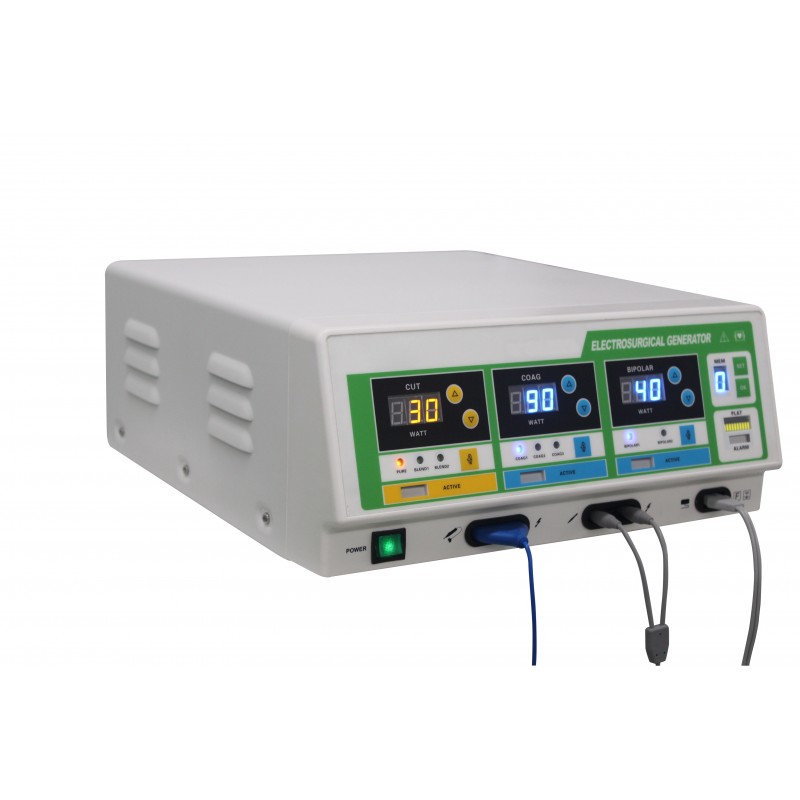

AP-200610-350

• Monopolar & Bipolar and with Spray function • Automatic detetcion function for startup and

error function

• There are maximum 10 memory settings

• Dual pencils can be used alternatively to improve the cooperation in the surgery

• Alarms acoustic & visual in case the contact surface with neutral pad is lost

• Dual patient-plate
• Auto power output when loads change during operation

• Power: 220V/110V - 50 Hz

In Option:

• Trolley
• Electrodes
• Bipolar forceps

Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

Technical Specifications:

• Operating frequency: 330 – 460 kHz

• Pure Cut: 1 W - 350 W with load at 500 ohm

• Blend cut -1: 1W - 250 W with load at 500 ohm

• Blend -2: 1W - 150 W with load at 500 ohm

• Coagulation 1 SPAY: 1 W - 120 W with load at 500 ohm

• Coagulation 2: 1 W - 100 W with load at 500 ohm

• Coagulation 3: 1 W - 50 W with load at 500 ohm

• Coagulation Bipolar 1: 1 W - 150 W with load at 100 ohm

• Coagulation Bipolar 2: 1 W - 100 W with load at 100 ohm

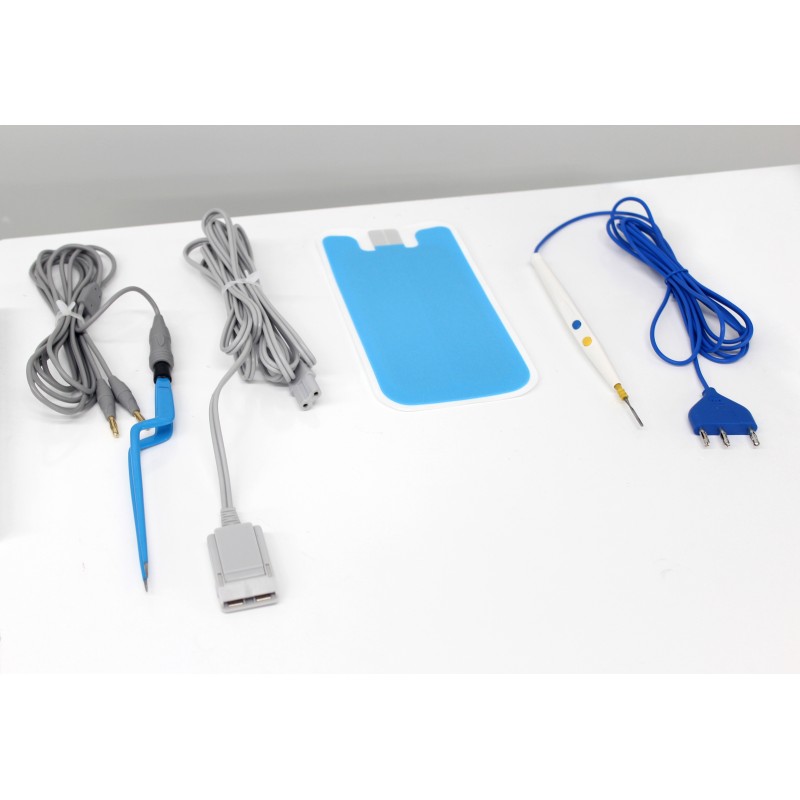

Standard accessories:

• 1 bipolar foot pedal

• 1 monopolar foot pedal

• 1 bipolar forceps (20 cm)

• 2 pencil (handle and cable) reusable

• 2 pencil (handle and cable) single use • 1 reusable patient plate

• 1 cable for plate

• 1 set of electrodes

• 1 power cord

• 1 User manual

• 1 Maintenance manual
