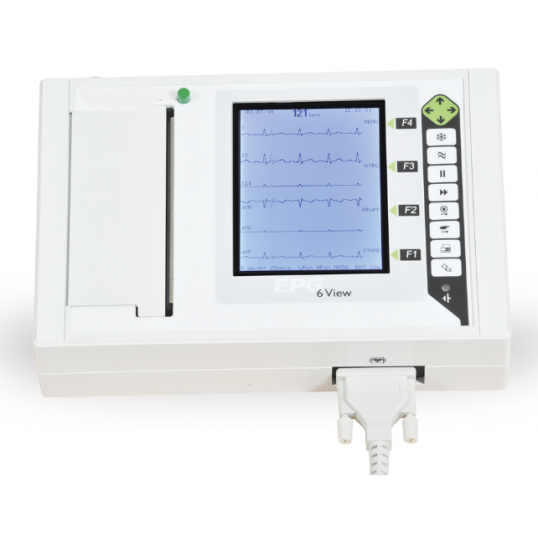

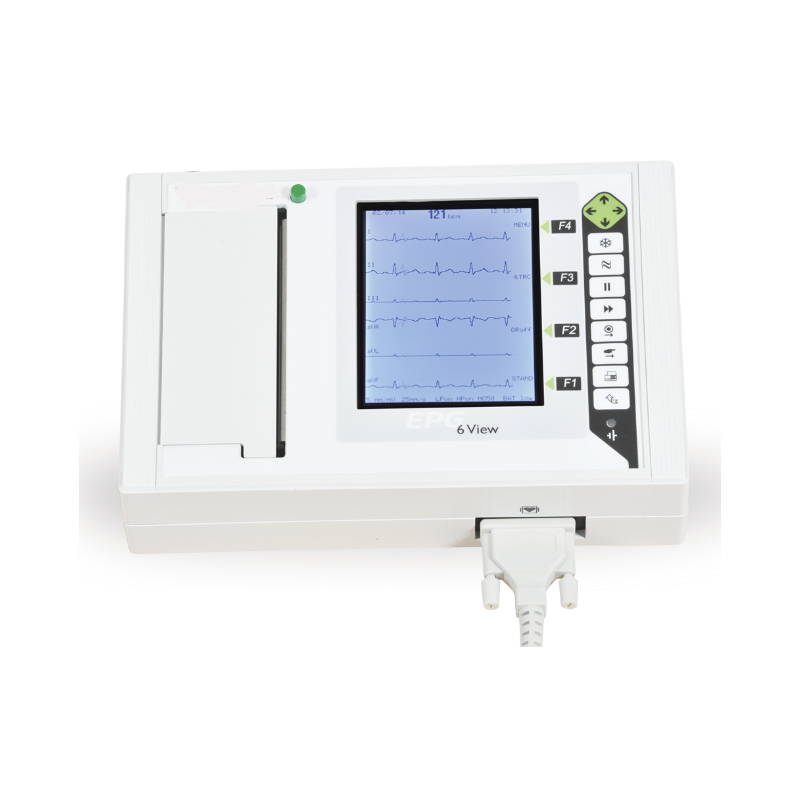

AP-102510-6

ECG  6 CHANNELS

• 4.7'' LCD TFT DISPLAY 320x 240 pixels

• High resolution thermal printer (8 dots/mm), paper 110 mm

• Rythm lead : Standard 12 leads

• Defibrillation protection: internal

• Recording manual or automatic

• Operating time: approx. 2.5 hrs, continuous use

• Scrolling speed: mode of rhythm 5,10,25 and 50mm/sec

• Signal memory: 10sec for eac lead


Power Supply:

• AC : 220V, 50/60 Hz, 150mA max, isolation CL2 B

• DC: Internal Lithium battery, 2 Ah

• Dimensions: 240 x 160 x 65 mm

• Weight: 1.5 kg

Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

 STANDARD ACCESSORIES:

- Patient cable

- Electrodes set

- Gel flacon

- Paper roll

- Power cable

- User manual
