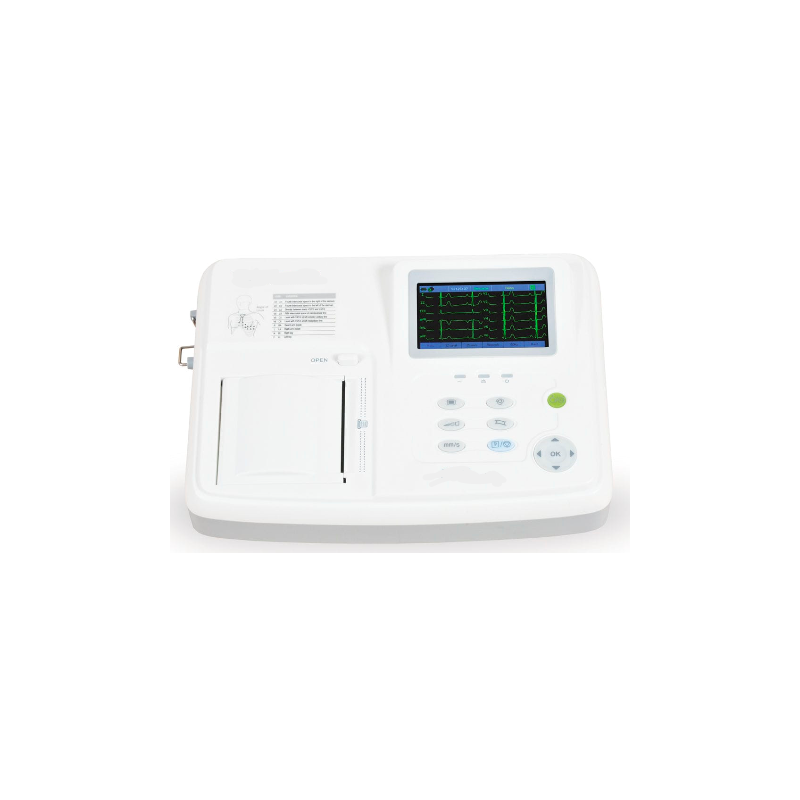

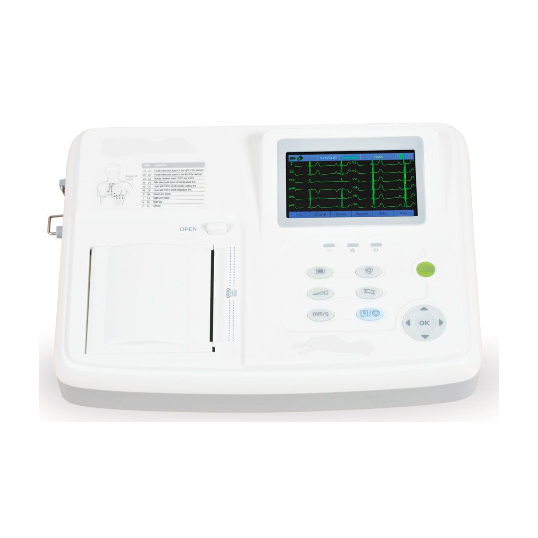

AP-102500-3

ECG  1-3 CHANNELS

• 4.3'' LCD TFT DISPLAY Touchscreen resolution

• High resolution thermal printer ( 8 dots/mm), paper 72mm

• Rythm lead: Standard 12 leads

• Defibrillation protection: internal

• Recording manual or automatic

• Operating time: approx.3hrs.continuous use

• Scrolling speed:  - mode of rhythm 12,5/25/50

                            - manual mode  5/6,25/10/12,5/25/50

• Internal memory: 100 groups ECG data

• Memory on USB disk (optional) with possibility to export data in PDF format


Power Supply:

• AC : 100-220V, 50/60 Hz

• DC: Lithium battery, 2 Ah

• Dimensions: 315 x 215 x 75 mm

• Weight:  1.6 kg


Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

STANDARD ACCESSORIES:

- Patient cable

- Electrodes set

- Gel flacon

- Paper roll

- Power cable

- User manual
