LAB-108100-BO

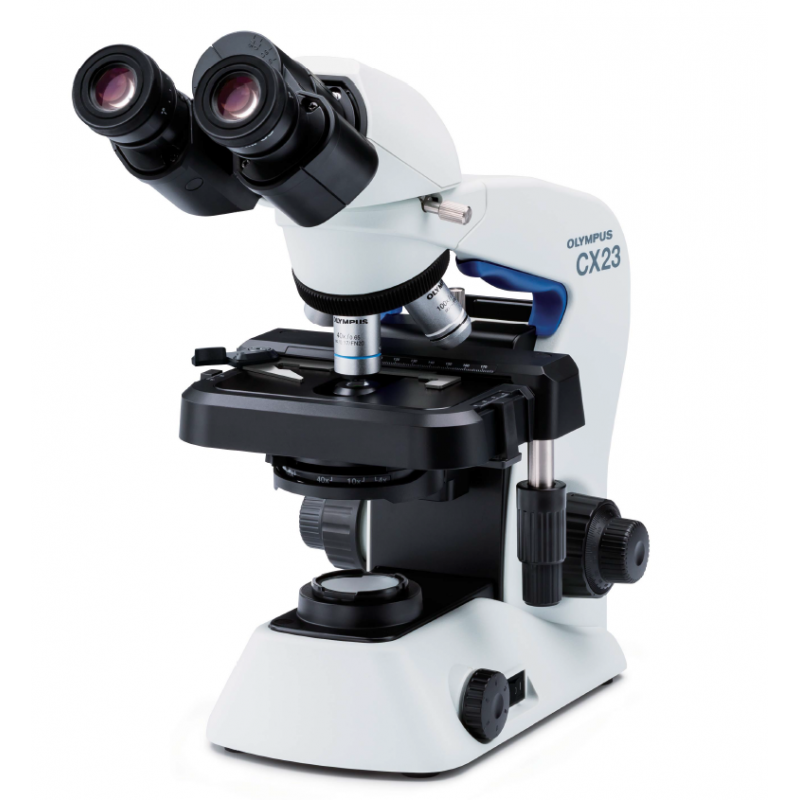

BIOLOGICAL MICROSCOPE

• Tube inclination 30°

Interpupillary adjustments, ranging from 48 to 75 mm, enables individual users to set it to their needs.

Built-in transmited illumination system .LED power consumption: 0.5 W (nominal value)

Fixed quadruple nosepiece with inward tilt

 Abbe condenser NA 1.25 with oil immersion

 Objectives :Plan Achromat, anti-fungal

4X     NA 0.1      W.D. 27.8 mm

10X   NA 0.25    W.D. 8.0 mm

20X   NA 0.4      W.D. 2.5 mm (optional)

40X   NA 0.65    W.D. 0.6 mm

100XOil NA 1.25 W.D. 0.13 mm
