AP-101500

FOETAL DOPPLER

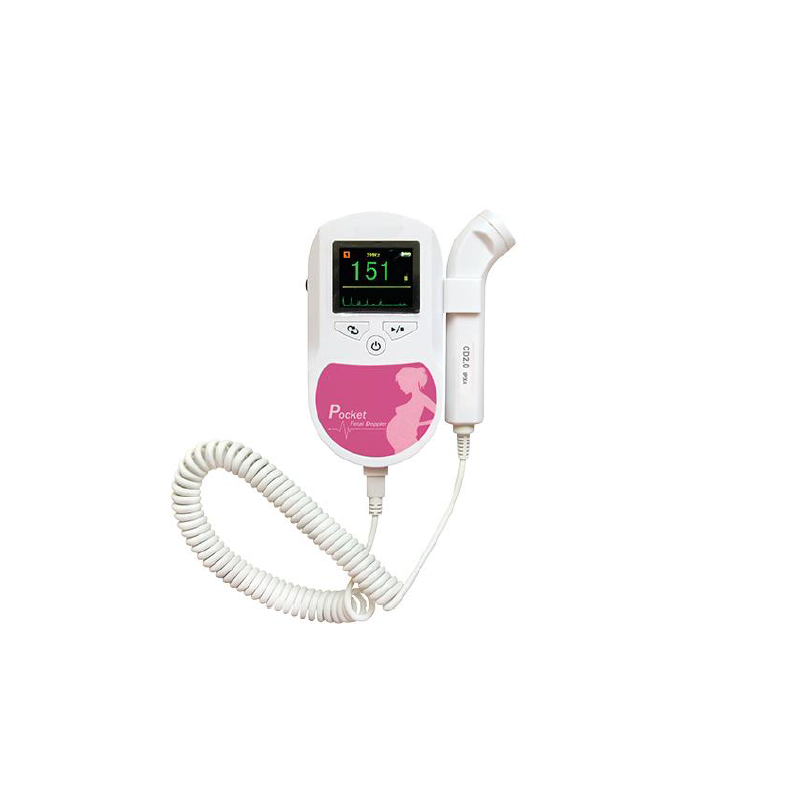

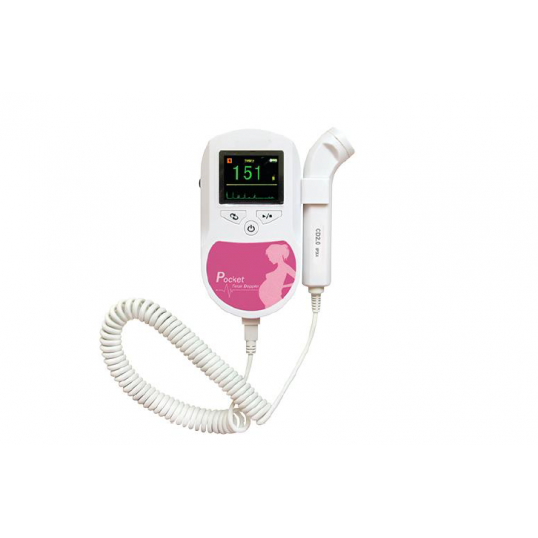

• Pocket Fetal Doppler is a hand-held metal heart rate detecting device adopted Doppler theory. It can be used in hospital and clinic for daily self-check by pregnant woman. The device adopts color LCD screen of high resolution, which can display the fatal heartbeat waveform and calculate the FHR value to help doctors for diagnosis in time

Features:

• Delicate and compact design, portable and easy to use

• Crooked probe structure, which is easy to operate and increases the feeling of comfort, embodies the humanised design

• Three working mode: Real-time FHR Display Mode, Averaged FHR Display Mode and Manual Mode

• FHR values, bar graph and heartbeat waveform color display

• Alarming in red when the FHR value is out of the normal range

• Probe falls of detection, battery status indication

• Automatic shutdown: The device will automatically turn off if there is no signal within 1 minute

• Audio interface: Can be connected to other recording devices by recording cable, record foetal heart sound in real time

• Two 1.5V batteries (AA LR6) can last more than 8 hours for normal use

Delivered with:

• 1 PVC transport case

• 1 battery alkaline 9V

Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

Performance:

• Safety classification: internally powered equipment, type CE applied part

• Display: 1.77''262K TFT

• Range of foetal heart rate: 50 BPM - 240 BPM

• Resolution: 1 BPM

• Accuracy: +- 2 BPM

• Power consumption: < 1W

• Rated operational voltage: DC3

• Battery: two 1.5 V batteries  (type: AA LR6)

Probe:

• Normal Frequency: 2.0 MHz

• Working Frequency: 2.0 MHz +- 10%

• Comprehensive Sensitivity: ≥90 dB

• Ultrasonic Output Power: P < 20 mW

• Negative Peak Sound Pressure: P_<1 MPa

• Output Beam Intensity: lob < 20mW/cm2

• Spatial-peak Temporal-average Derived Intensity: Ispta < 100 mW/cm2

• Working Mode: Continuous wave doppler

• Effective Radiating Area of Transducer: < 157 mm2
