LAB-109120-625

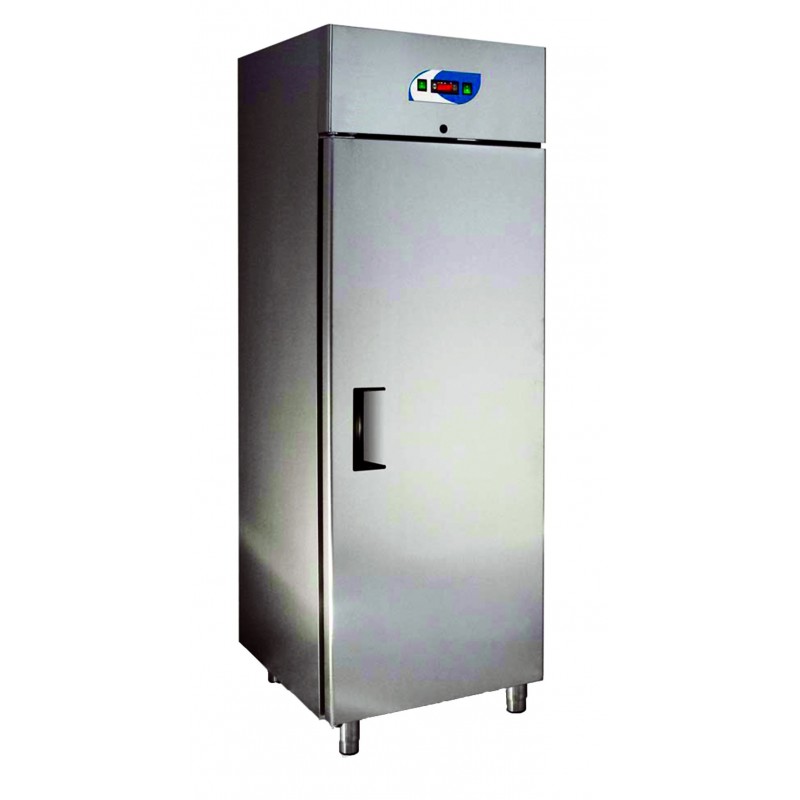

LABORATORY FRIDGE LR 0° +15°C LAB-109120-625

• Vertical type • Capacity: 700L

• Made from sheet steel epoxy coated white or from stainless steel and

   both in-and outside from stainless steel.

• Internal corners rounded to easy any cleaning operations

• Insulation high density (40 Kg/m³) foamed-in-place polyurethane,

   with a thickness of 60 mm.

• Feet made from stainless steel, adjustable in height for levelling

• Insolated hinged door, sheet steel epoxy c oated white or stainless steel

   always both in- and outside).

• Door provided with a removable magnetic rubber gasket.

• Door also fitted with a spring loaded automatic closing device for

   openings inferior 90° and special door switch that stops the internal

   ventilation at the door opening (to limit the air cold loss)

• Internal lighting at every opening

• Internal shelves realized sheet steel with a strong plastic coating

   (rust-proof material). Mounted on special anti-tilt stainless steel slides

• Internal racking-system flexibility of the internal fitting with possibility

   of interchanges and combine both shelves and drawers.

• Internal lighting: 1 bulb, mounted in the bottom part of the control panel,

   with automatic activation at every door opening through a special switch

• Control panel: located in the top part of the structure (above the door) is

   compounded by the main switch and digital electronic thermostat with

   incorporated alarm

• Main switch: ON/OFF switch, adjustable in 2 positions

• Digital electronic thermostat with incorporated alarm: microprocessor

   operating, with 4 switches, allowing the control of all the refrigerator

   functions.

• LED display, with red colour, bright indication and an accuracy of 0 ,1 °C.

• Thermostat includes even an alarm, both acoustic (with a buzzer) and

   visual (with indication LED dots) for temperature deviations.

• Cooling unit: top mounted, with the condensing unit compounded by Nr 1

   hermetic compressors and Nr 1 finned condenser, air cooled through a fan.

• Storage chamber, is mounted the finned evaporator with copper pipes,

   that is housed into a plastic cover that incorporate the fan.

• Refrigerant: R404a CFC-free

• Refrigeration: forced-air, through a fan, granting the maximum

   temperature uniformity and stability inside of the cabinet

• Defrosting: completely automatic, thermostat controlled. The condensate

   water is automatically channelled into a tray, with manual emptying,

   located under the cabinet

• Temperature range: infinitely adjustable between 0°C / +15°C

• Voltage (V/ ph /Hz ): 220-230/1/50

• Breakers: Nr 2 glass cartridge fuses with a rating of 10A, at protection

   of the appliance

• Noise level ( dB ( A) ): ≤ 50
