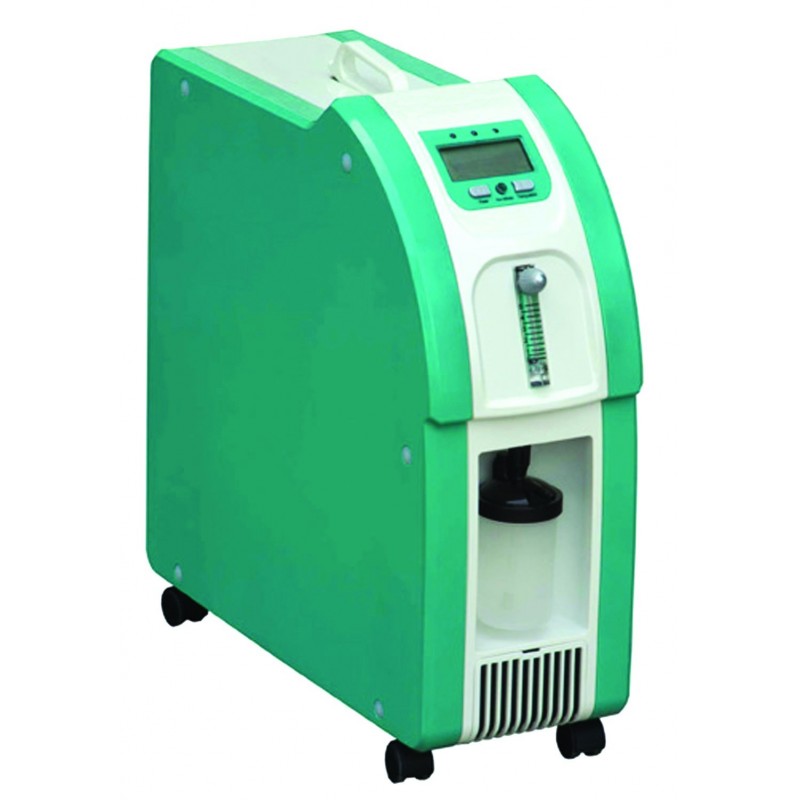

AP-200700-5

Designed for people suffering from respiratory failure.

Its principle is to concentrate oxygen from the air by removing nitrogen (air consists of about 20% oxygen and 79% nitrogen).

This unit can concentrate oxygen from the air to a level close to 90%.

The nitrogen removal is achieved through a molecular sieve made ​​of zeolite, the nitrogen being trapped by the sieve.

Contact us

  • 16

    16 years of experience

  • Large distribution network

  • Quality technical services

More info

Specifications

• O2 flow: Adjustable from 0 to 5 L/min

• Output pressure: From 0,3 to 0,7 bars

• Concentration of O2: Typical of 93% ± 3%

• Noise: < 45 dB

• Output: 1

• Atomizer: > 0,5 ml/min

• Dimensions in mm: 520 x 550 x 220

• Packing dimensions in mm: 595 x 642 x 275

• Weight: 24kg

• Power: 220 V - 50 Hz

• Consummation: < 350 W

• Certification: Classe II Grade B

• Alarm sector: Yes

• Alarm high / low pressure: Yes

• Timer: Yes
